Project type:
Metric record of 14th cent. roof prior to
works.

Method:
Measured Drawing, fitted REDM
wireframe CAD geometry.

Deliverable:
1:50 scale CAD drawing

Client:
Churches Conservation Trust.

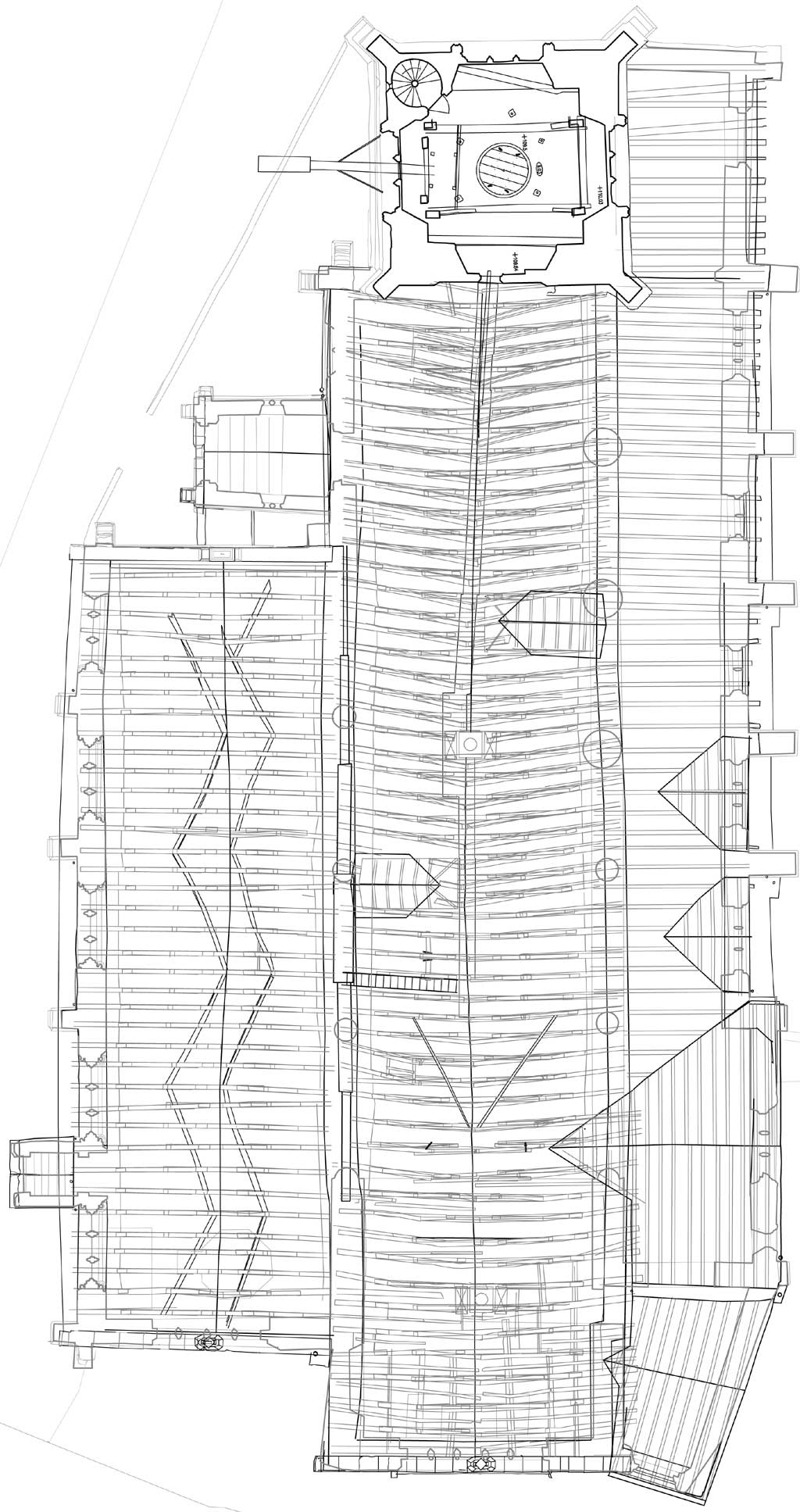

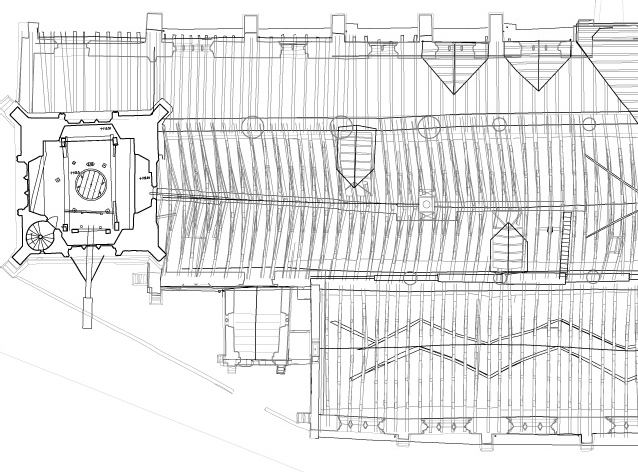

The scale of 1:50 is adequate to reveal the relationship between the roof and the plan below, the
TST method has ensured the consistency of precision required to do this.TheoLt provided the
wirefame from which the drawing was compiled.
